CAT320 excavator ripper

  • DG200-CAT320

  • Excavator: CAT320
  • Main sheet: 100 mm thick Q345B
  • Tooth: D9 ripper tooth
  • Self weight: 780 kg
  • Material: Q345B

Multi Ripper Bucket is the No.1 auxiliary attachment for Excavators

Excavator ripper usually for for follow case:
1. Hard soil,use GP bucket can not manage to excavate,can use ripper to rip the hard soil to make it fluffy,then use GP excavator bucket for excavating,loading&unloading.

2. Weathered Rock,and other not very hard rock,Also can use ripper to rip at first.

We can customize all kinds of Ripper for customer.
Our ripper have follow advantages:
1. Our ripper main sheet usually adopt very thick plate,high performance and durable.

2. Ripper Tooth base can be selectable:
- s1. together with the main sheet,a total sheet for main sheet and tooth base.
- s2. use cast base,cast base was welded on the main sheet.
This CAT320 ripper,tooth-base is a total sheel

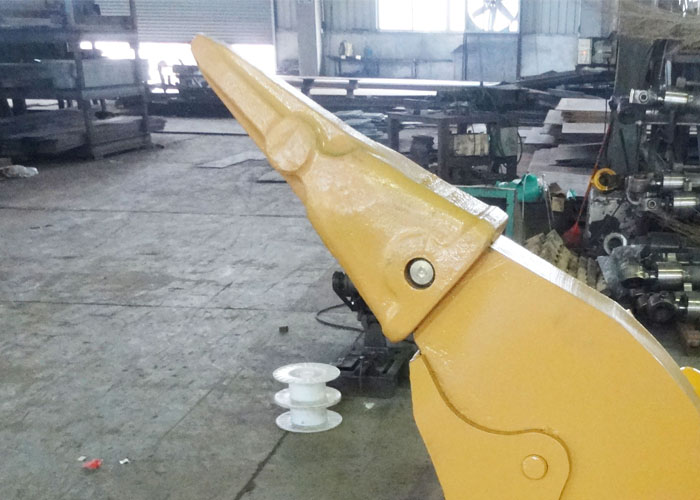

CAT320 Ripper-8

3. Main sheet have reinforced brace design,enhancing the structure.

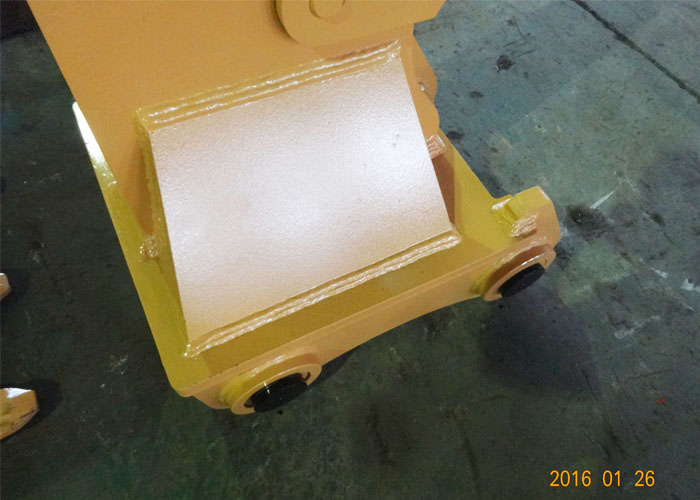

CAT320 Ripper-6

4. Tooth is CAT D9 ripper tooth

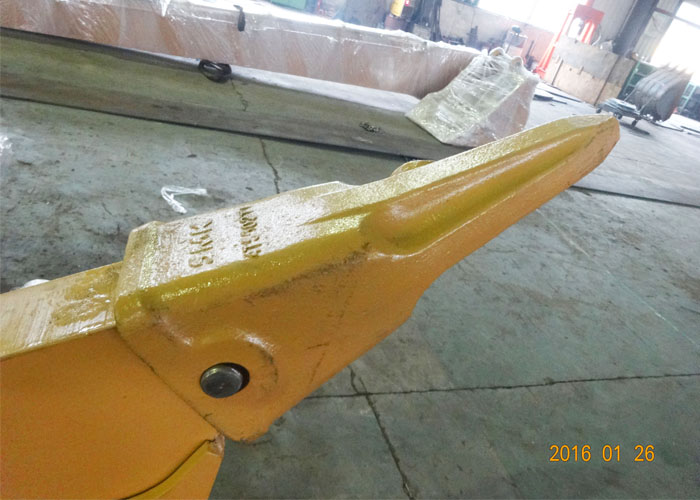

CAT320 Ripper-5

5. the main sheet guard plate,also Cast guard plate as customer requirements

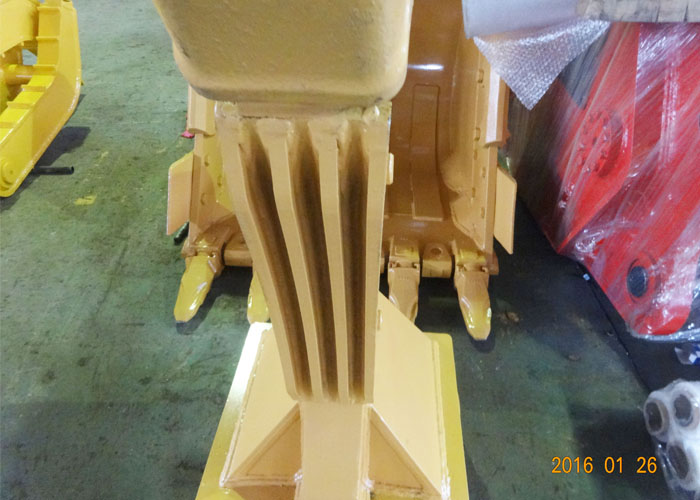

CAT320 Ripper-3

Specification of our series rippers:

Model DG100 DG200 DG300 DG350 DG450
Thickness of  main board(mm) 60 80 100 100 100
Weight(kg) 380 720 810 850 930
Material 16Mn 16Mn 16Mn 16Mn 16Mn
Excavator tonnage(ton) 10 20 30 35 45
